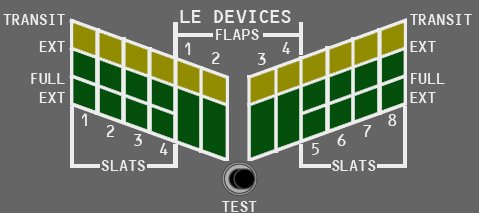

The Leading Edge Devices Annunciator Panel shows the
status of the leading edge flaps and slats during Trailing Edge
Flap extension.
A press to test button will illuminate all the lights for a bulb test.
The test feature does not test any part of the system, only the
bulbs.
status of the leading edge flaps and slats during Trailing Edge
Flap extension.
A press to test button will illuminate all the lights for a bulb test.
The test feature does not test any part of the system, only the
bulbs.
As the Trailing Edge Flaps extend, the amber in transit lights will
illuminate until each related LE device is in the EXTEND (EXT) or
FULL EXTEND (FULL EXT) position.
illuminate until each related LE device is in the EXTEND (EXT) or
FULL EXTEND (FULL EXT) position.
Review the sequence of LE Device lights as the Trailing Edge
Flaps are extended
Flaps are extended
Associated lights are located on
the center forward panel. Click on
the lights for additional information.
the center forward panel. Click on
the lights for additional information.
Aft Overhead Panel 700/800/900
| LE Devices Annunciator Panel |
